Oracle SOA Suite 12c human task URI configuration for task form


This post is focused on human task form non-availability in worklist application.
Problem Statement
  1. A new approval application (SOA composite) has been developed that uses human task activity.
  2. The composite has been deployed on soa server.
  3. Testing of composite is initiated through enterprise manager.
  4. Request successfully processed for asynchronous service call.
  5. Now the the assignee user logins to worklist application and clicks on task item.
  6. Ideally the task form should be opened in below panel but it shows a blank page.

Solution
Actually the human task URI is missing for respective human task so we need to add the same in composite through enterprise manager.

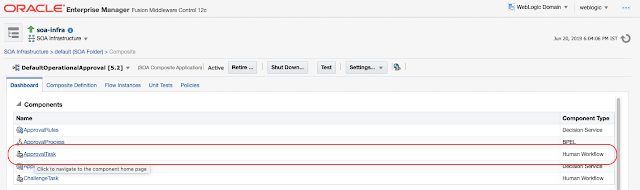

Step1- Open the composite and go to dashboard.
Step2- Click on respective human task


Step 3- Go to human task Administration tab and enter the details as followed below.

Step 4- Click on Apply button.
Step 5- Check the task form in worklist application now, it should be visible. If doesn't then simply restart the composite and create a new asynchronous service call via enterprise manager or SOAP testing utility like SOAP UI.
